Solar Panels

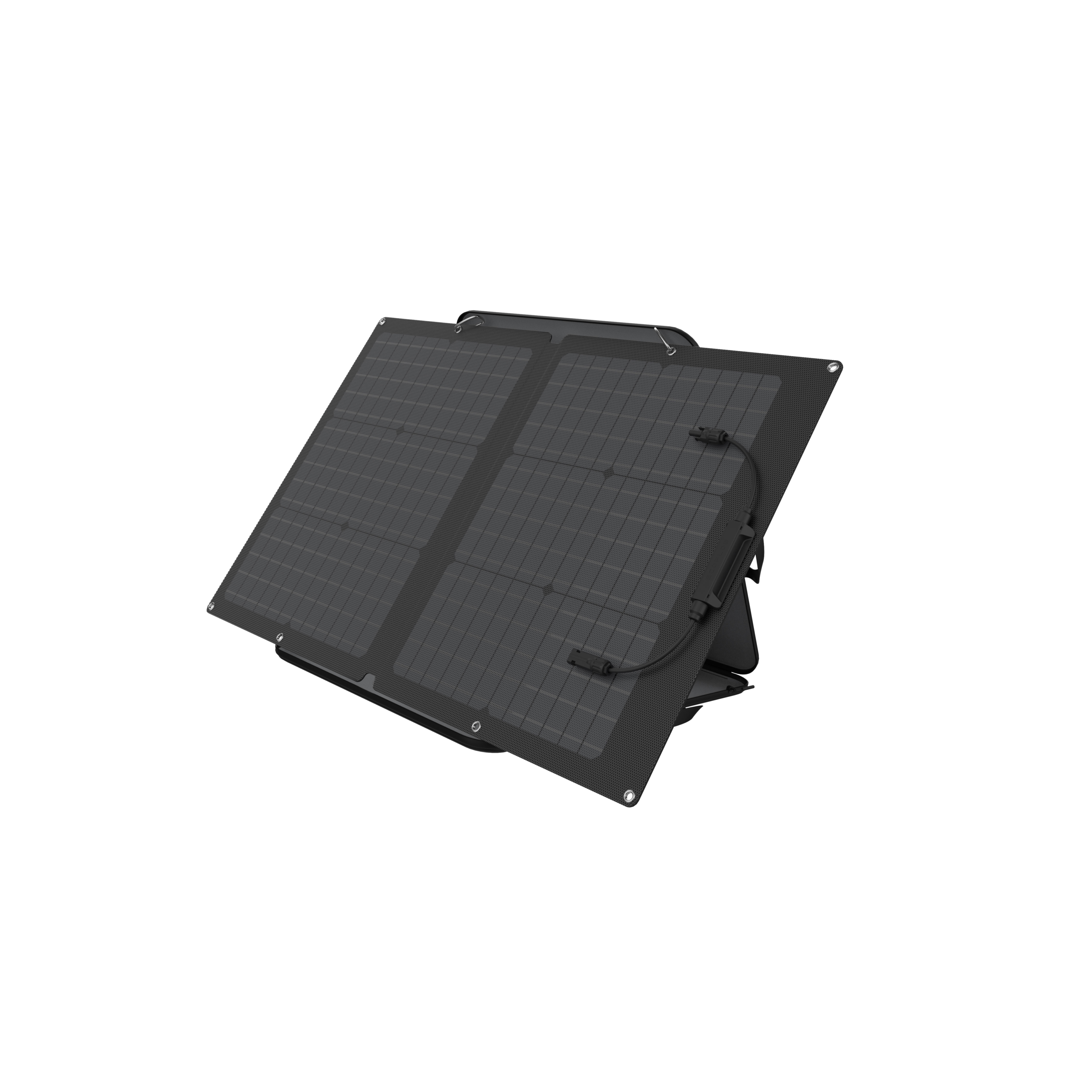

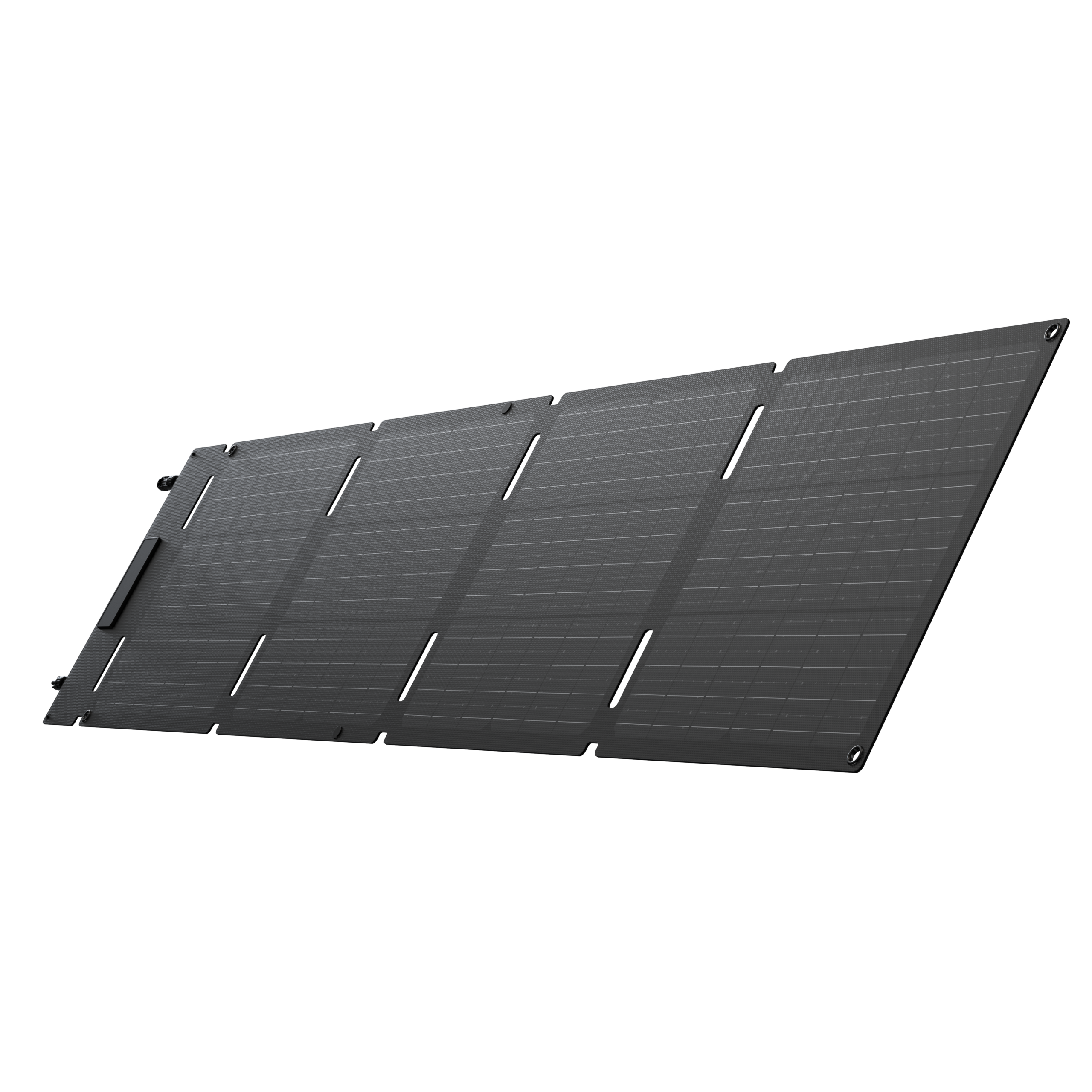

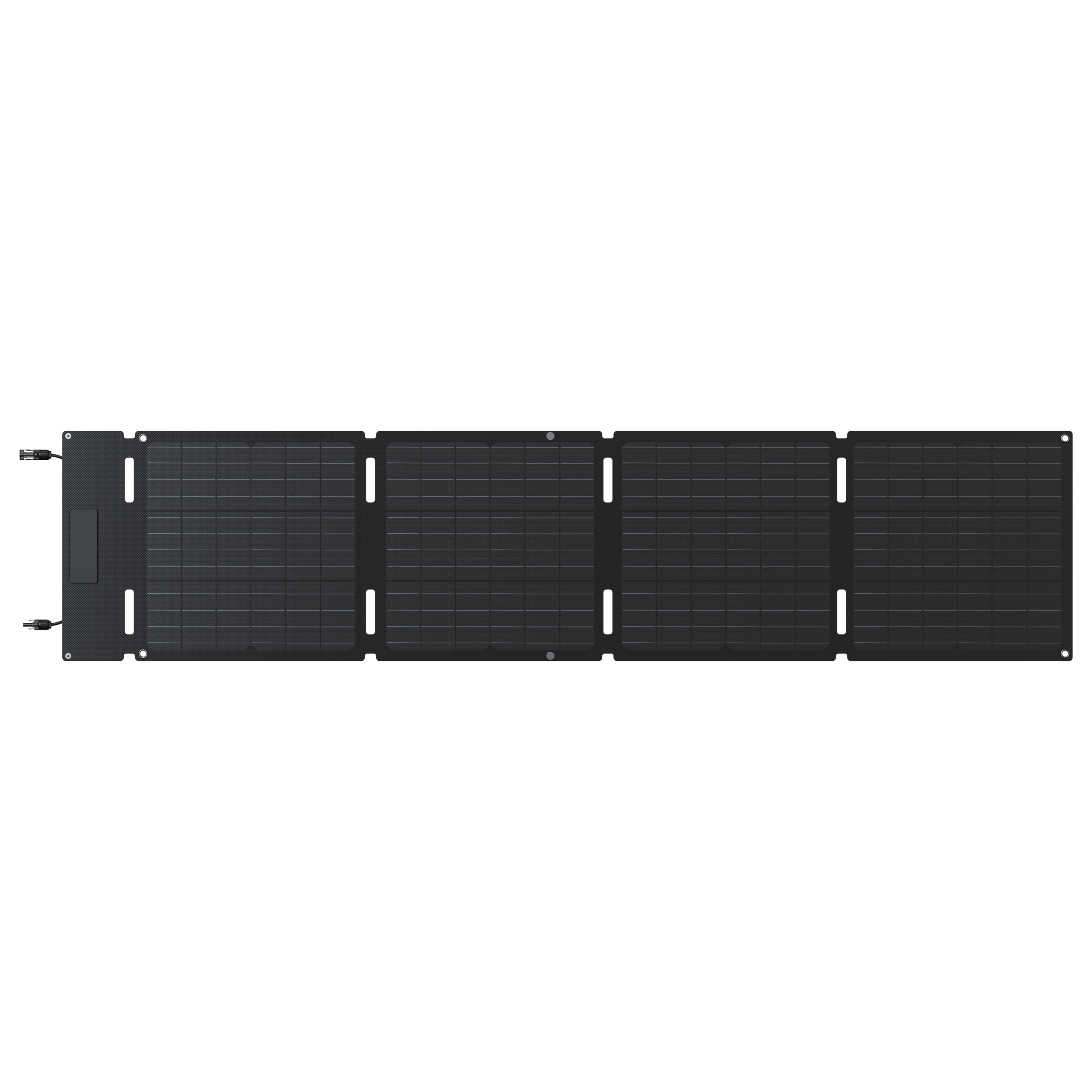

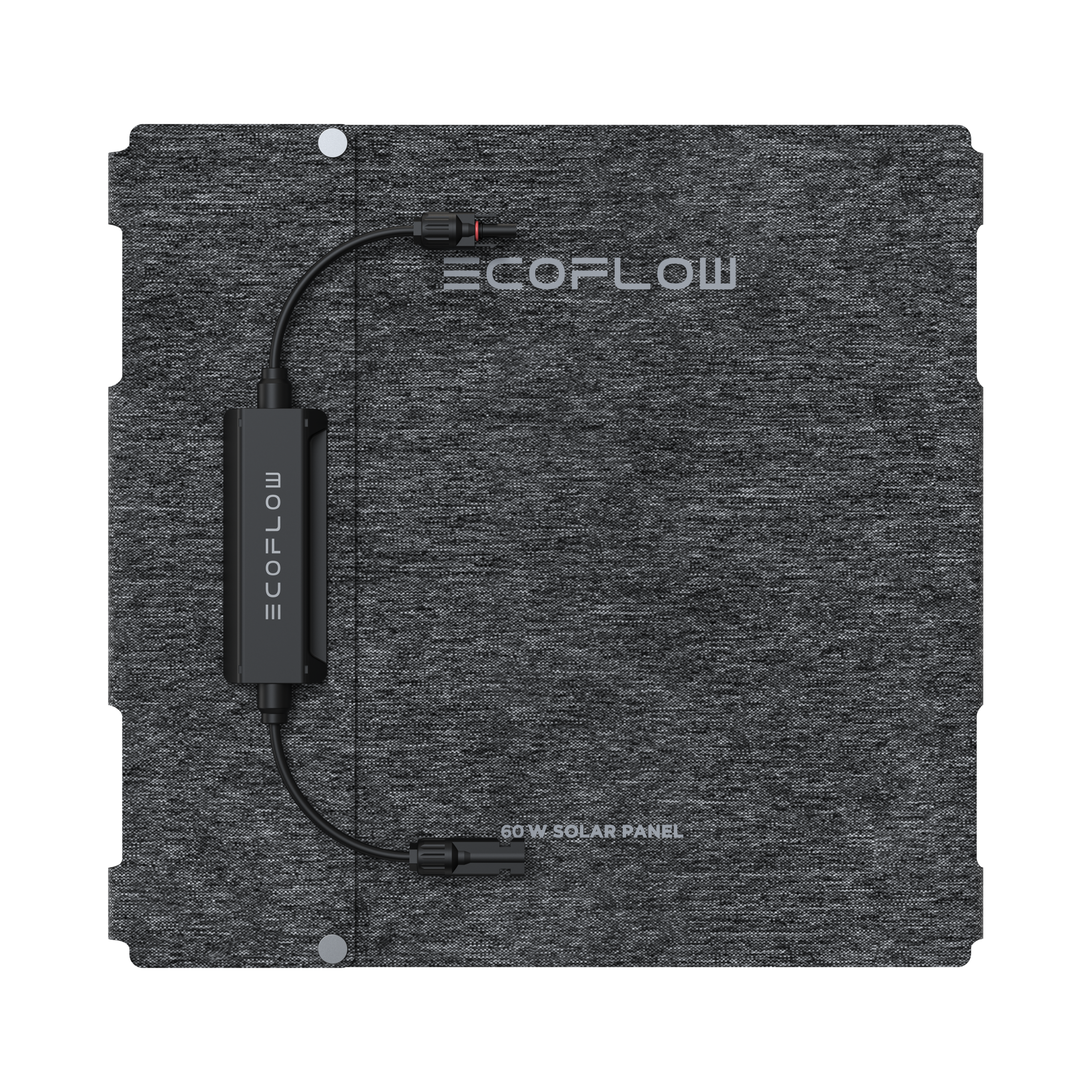

60W
- Rated Power: 60W
- Efficiency: Up to 25%
- Weight: Very light (~5-7 lbs)
- Best for: Backpacking, minimal charging (phones/lights)
- Approx. Price: Lower entry-level

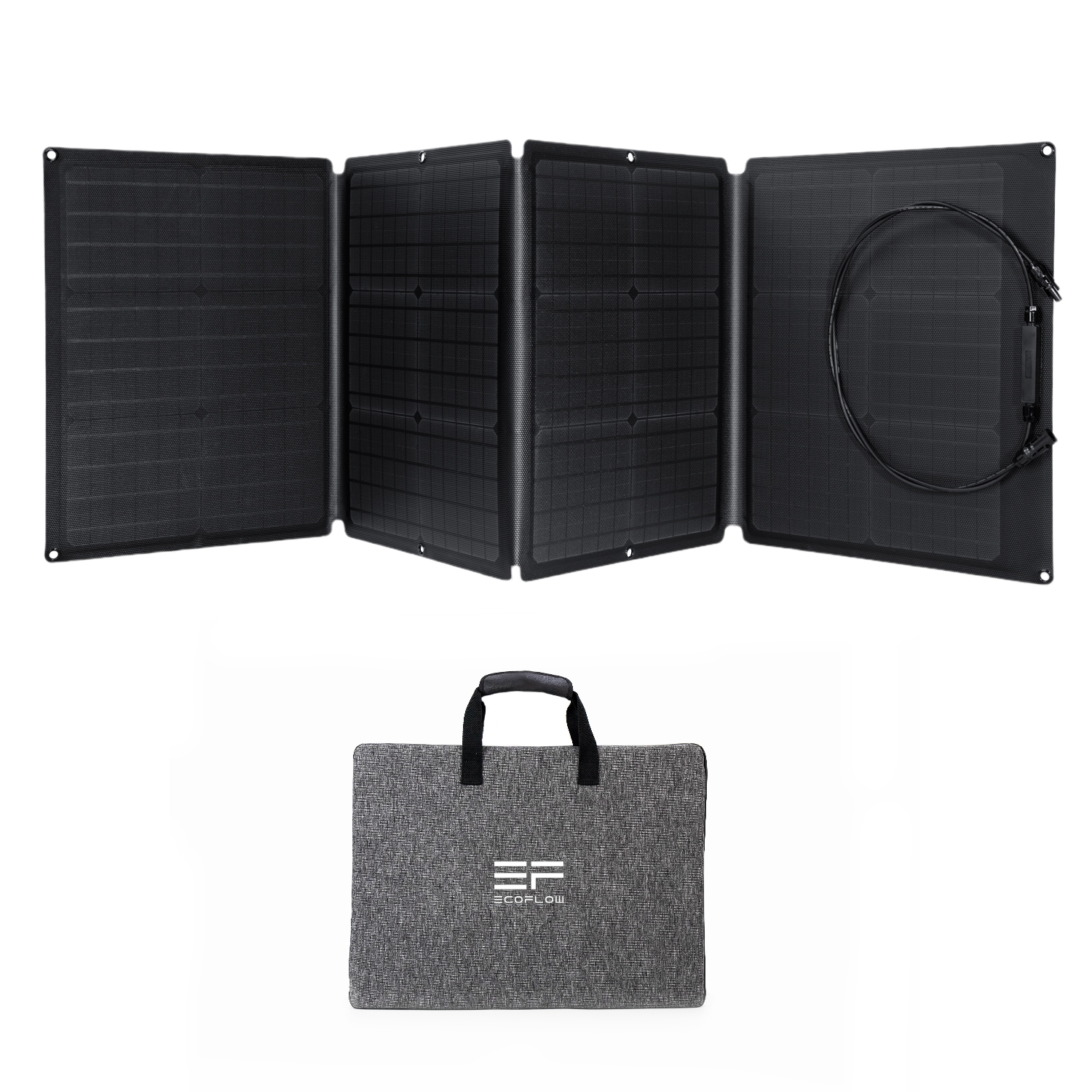

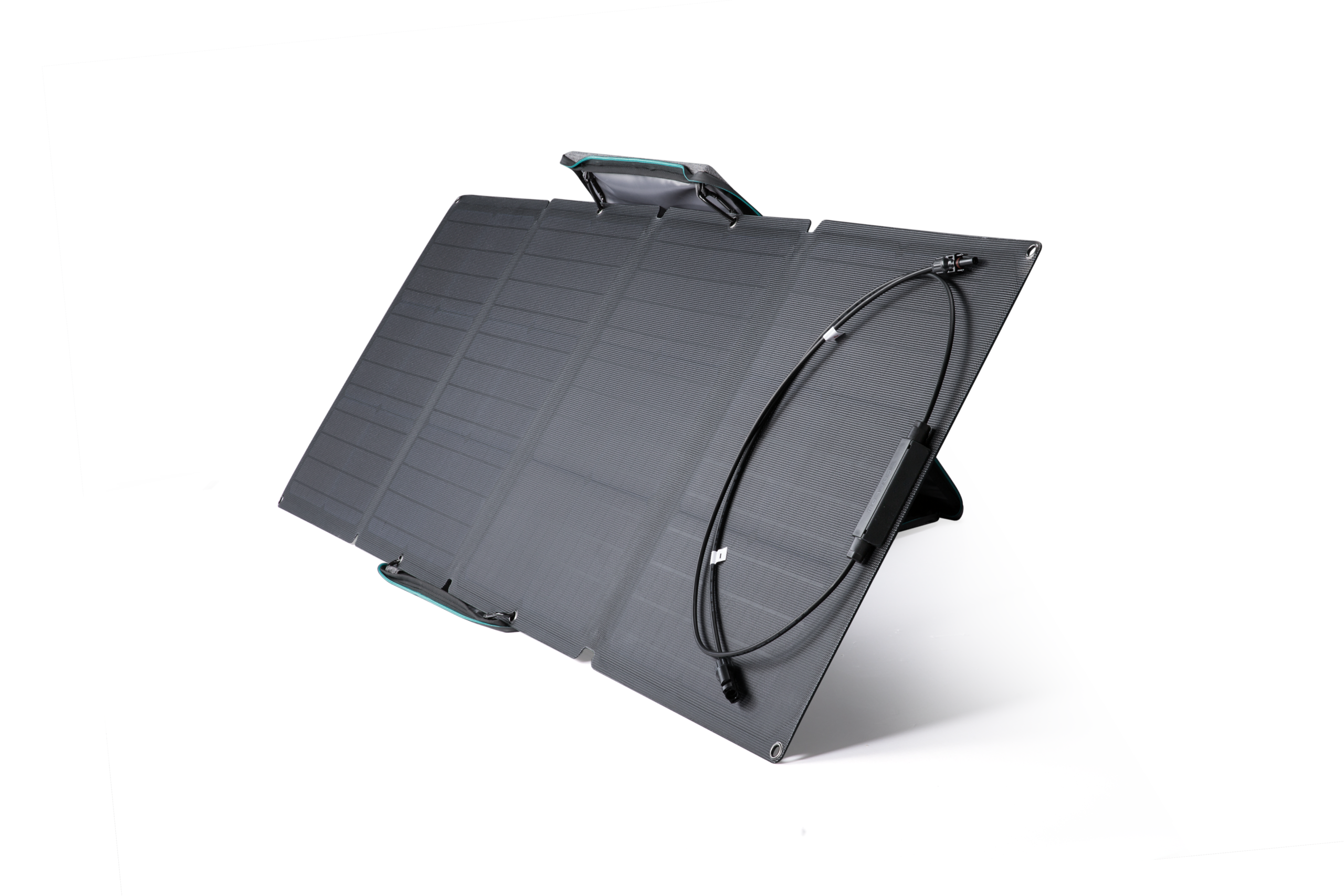

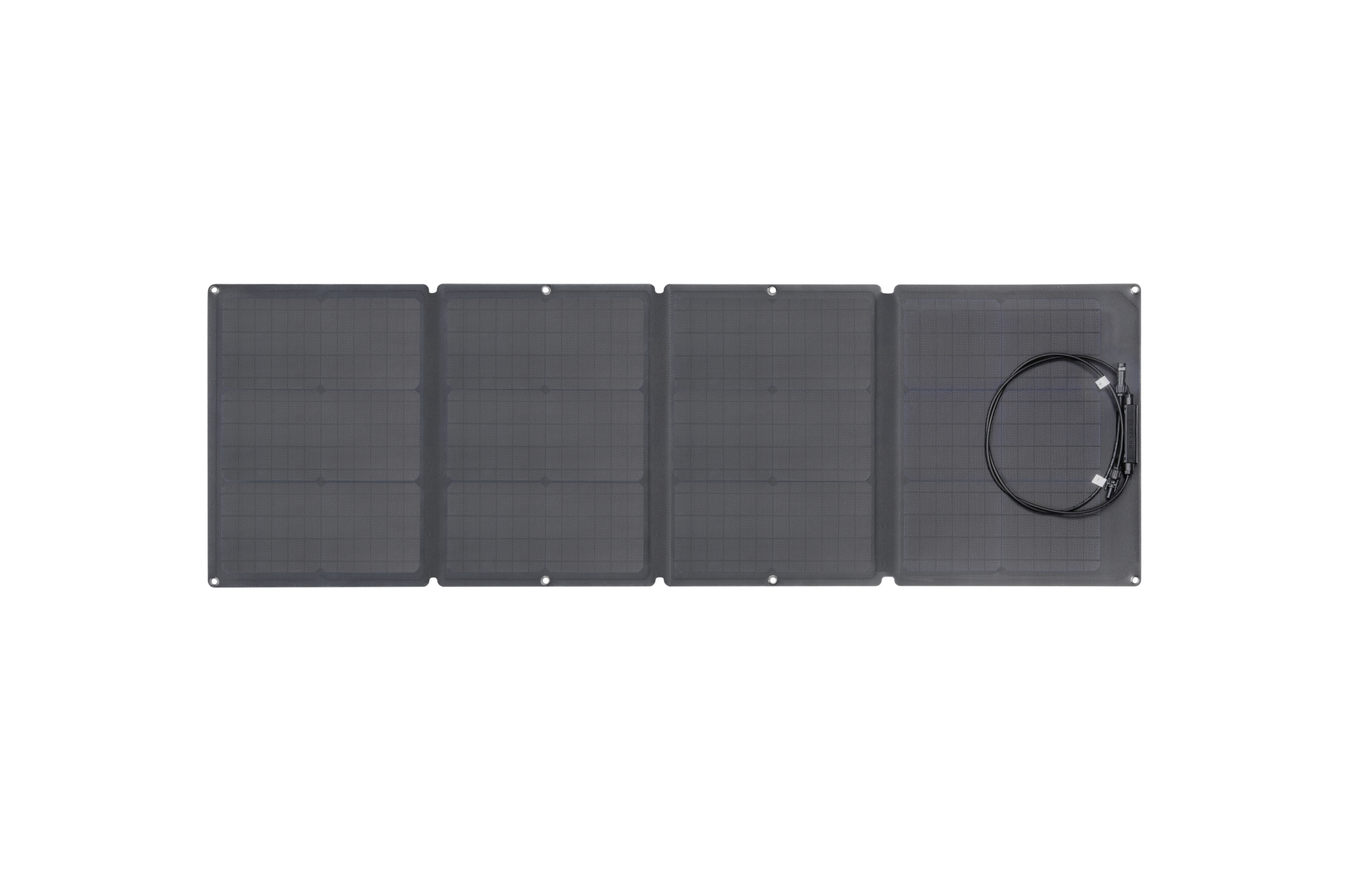

110W
- ated Power: 110W (±5W)
- Efficiency: 22–23% (monocrystalline silicon cells; some sources note up to 23% in real-world tests)
- Open Circuit Voltage (Voc): 21.8V (Vmp ~18.4V)
- Short Circuit Current (Isc): 6.5A (Imp ~6.0A)
- Connector: Solar (MC4-compatible, often with XT60 adapter for direct EcoFlow connection)
- Dimensions:
- Unfolded: ~16.5 × 70.3 × 1.0 in (42.0 × 178.5 × 2.5 cm)
- Folded: ~16.5 × 20.2 × 1.0 in (42.0 × 48.0 × 2.5 cm) — compact enough for bags or car storage
- Weight: 8.8 lbs (4 kg) — easy to carry with built-in handle and carry case
- Durability: IP68 waterproof and dustproof (fully protected against immersion and harsh conditions)

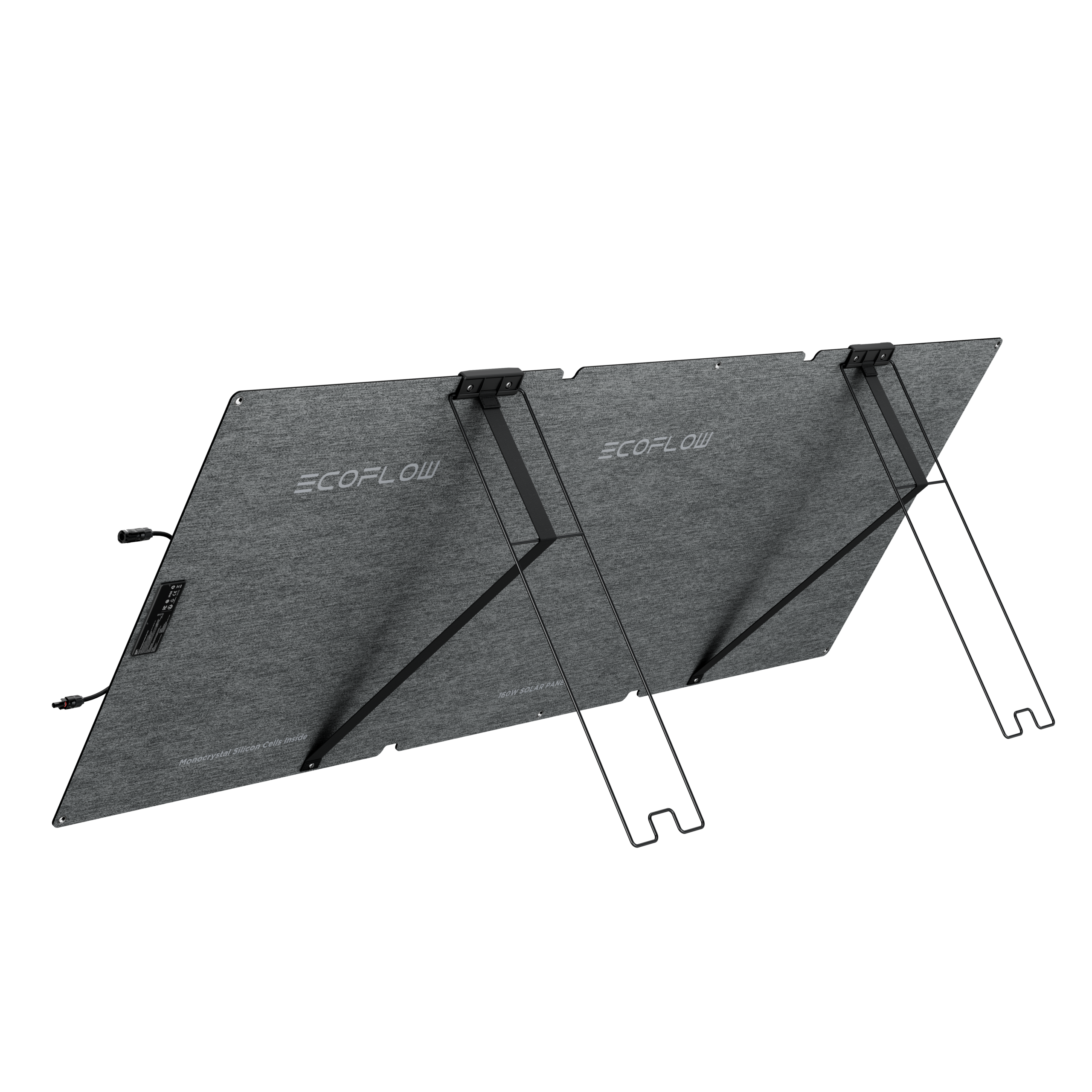

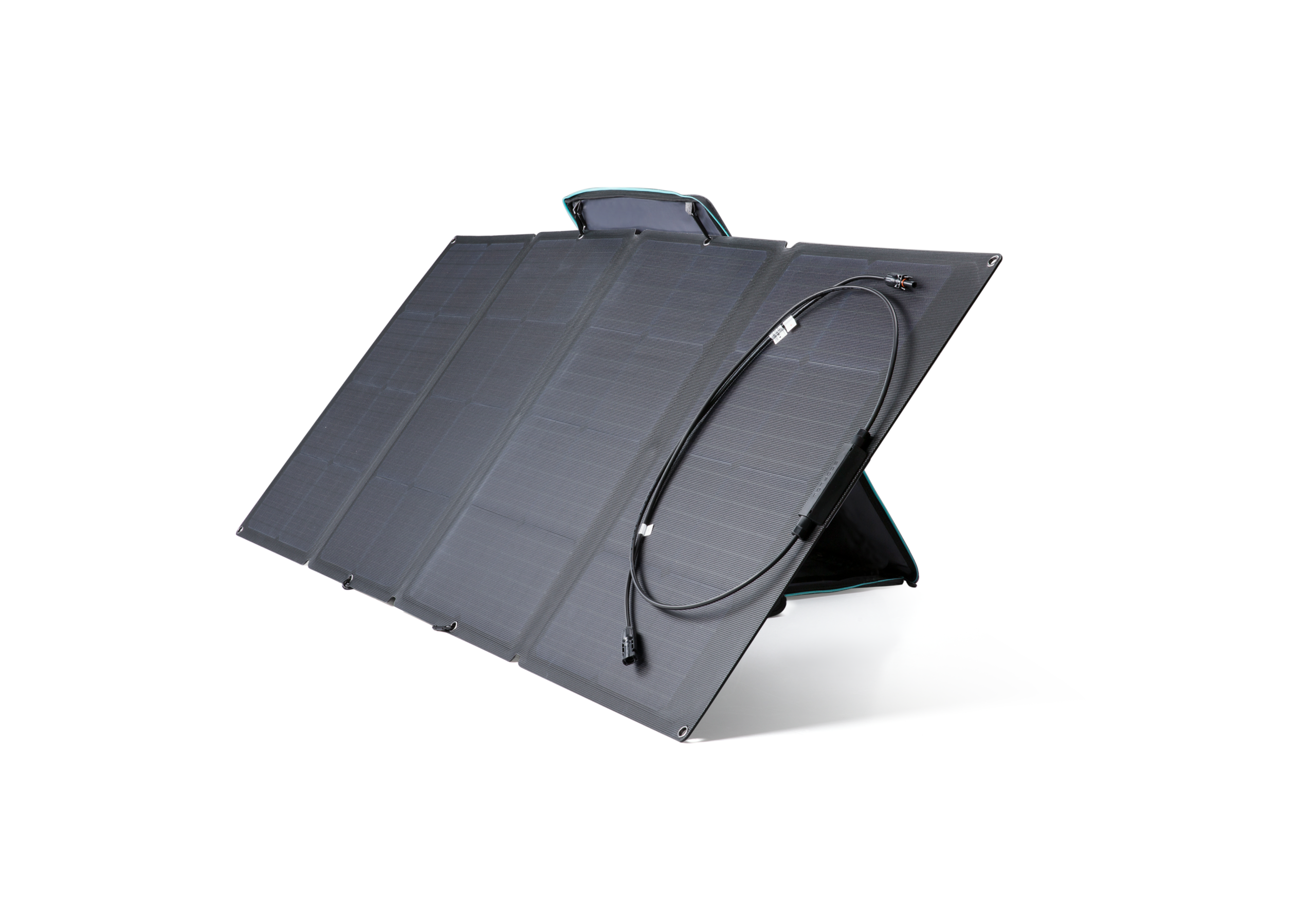

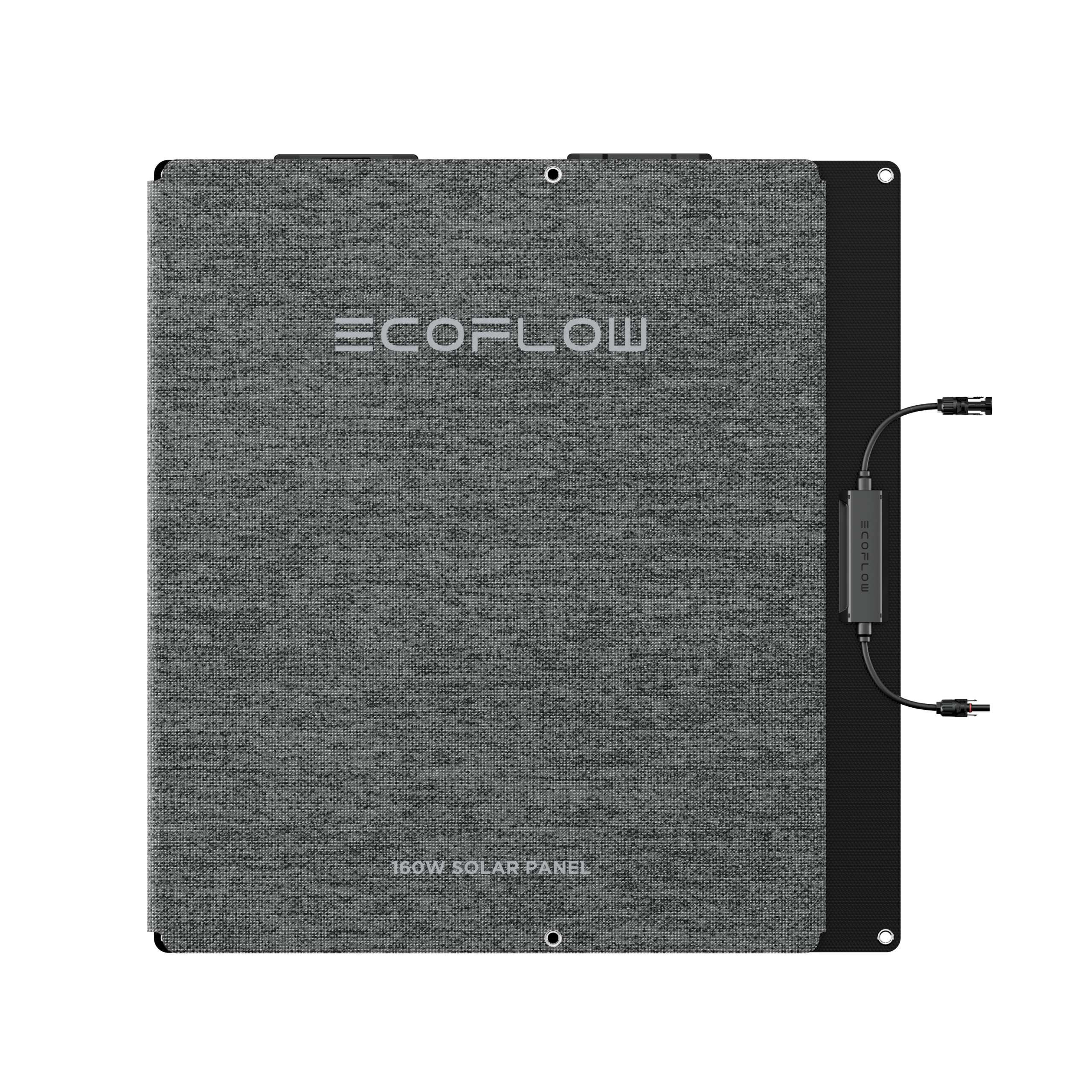

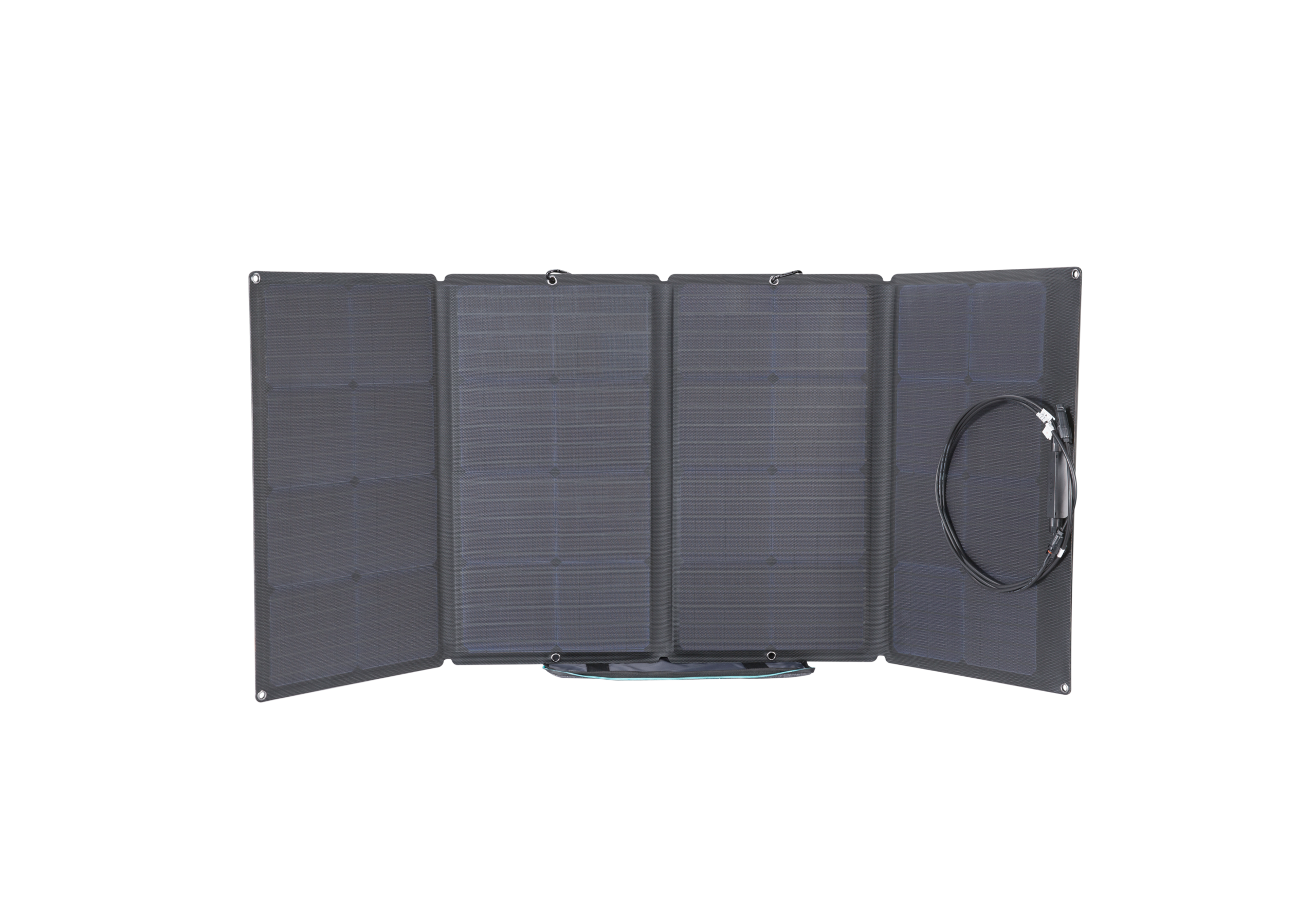

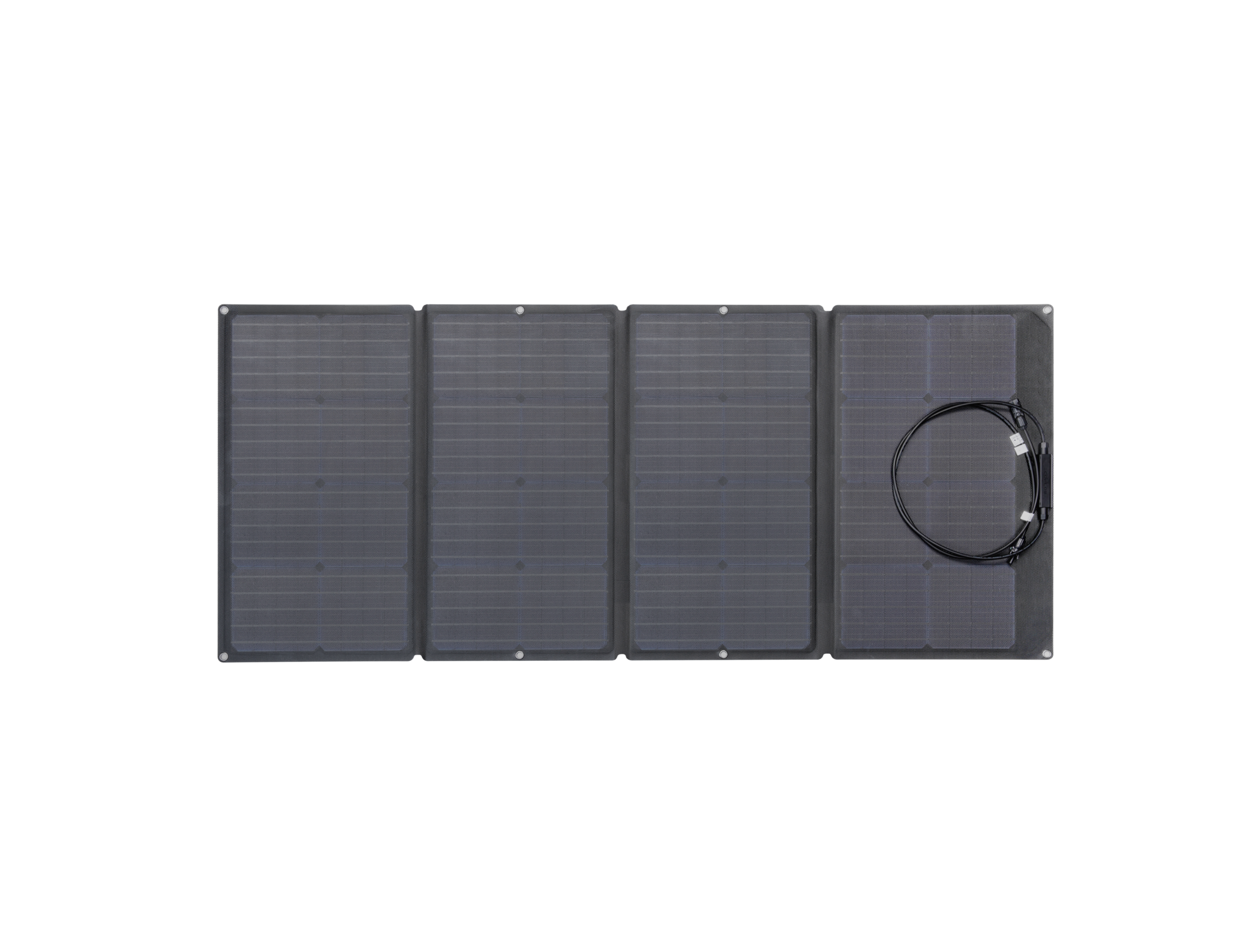

160W
- Rated Power: 160W (±5W)
- Efficiency: 25% (using advanced N-Type TOPCon monocrystalline silicon cells — a big upgrade over older 21-23% panels)
- Open Circuit Voltage (Voc): 21.3V (Vmp ~18.6V)
- Short Circuit Current (Isc): 9.1A (Imp ~8.6A)
- Connector: Photovoltaic (MC4-compatible, with XT60 adapter for direct EcoFlow station connection)
- Dimensions:
- Unfolded: 23.6 × 63.4 × 1.0 in (600 × 1610 × 25 mm)
- Folded: 23.6 × 22.5 × 1.3 in (600 × 572 × 32 mm) — compact for storage in a backpack or car
- Weight: Approx. 12.3 lbs (5.6 kg) for the panel itself (some older listings note ~15.4 lbs including kickstand/case)
- Durability: IP68 waterproof and dustproof (fully submersible, great for Ethiopia’s occasional rain or dusty conditions)

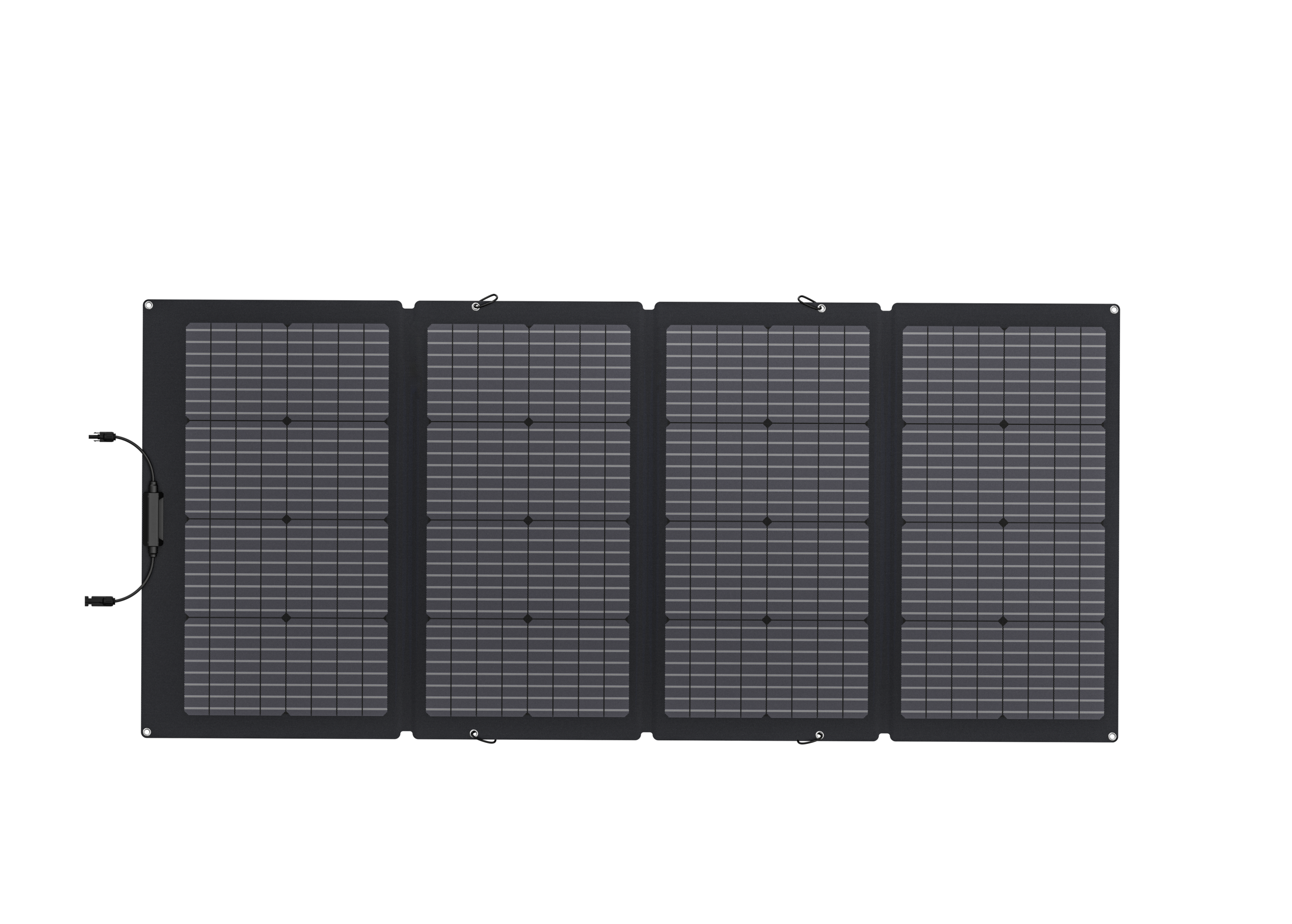

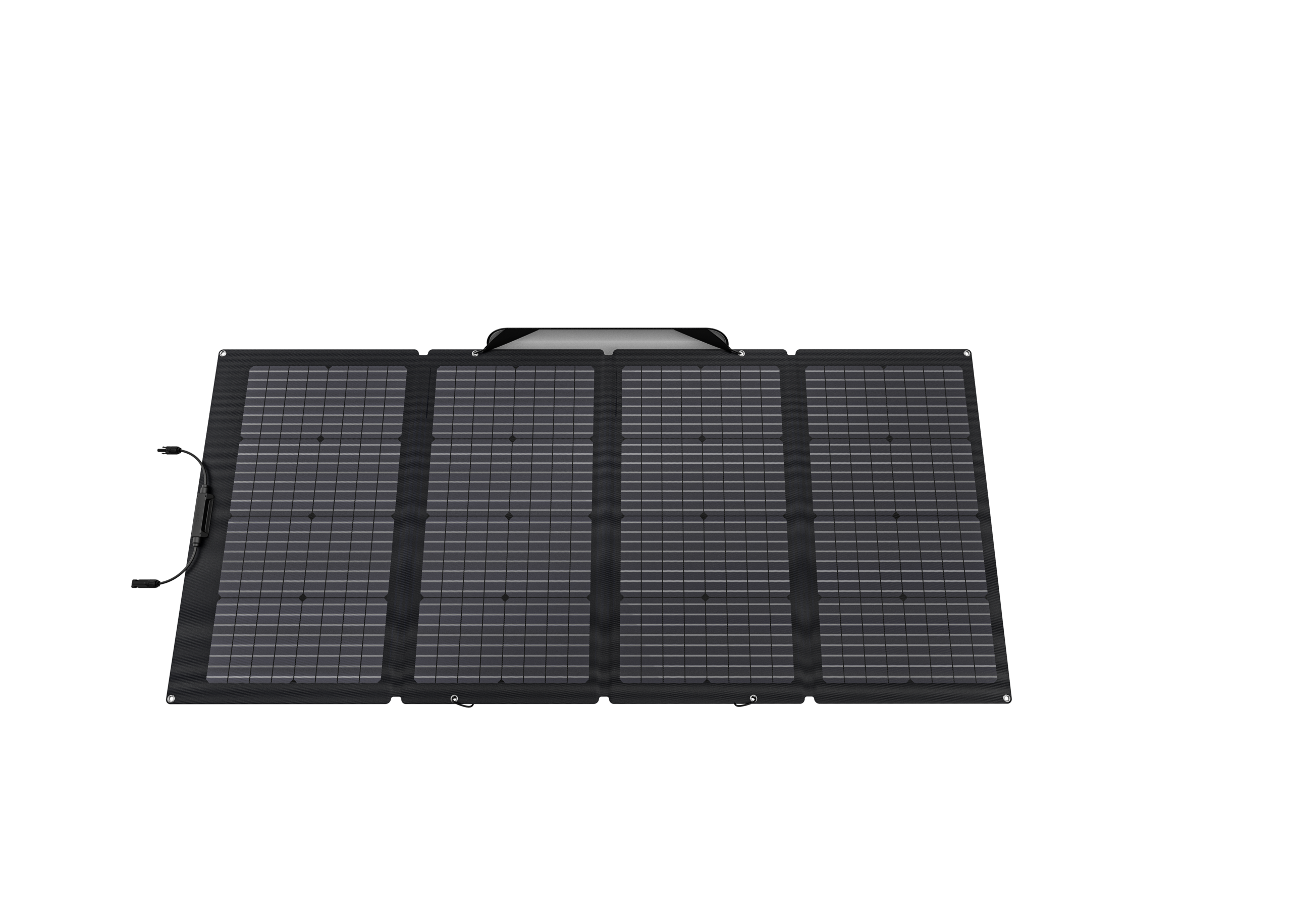

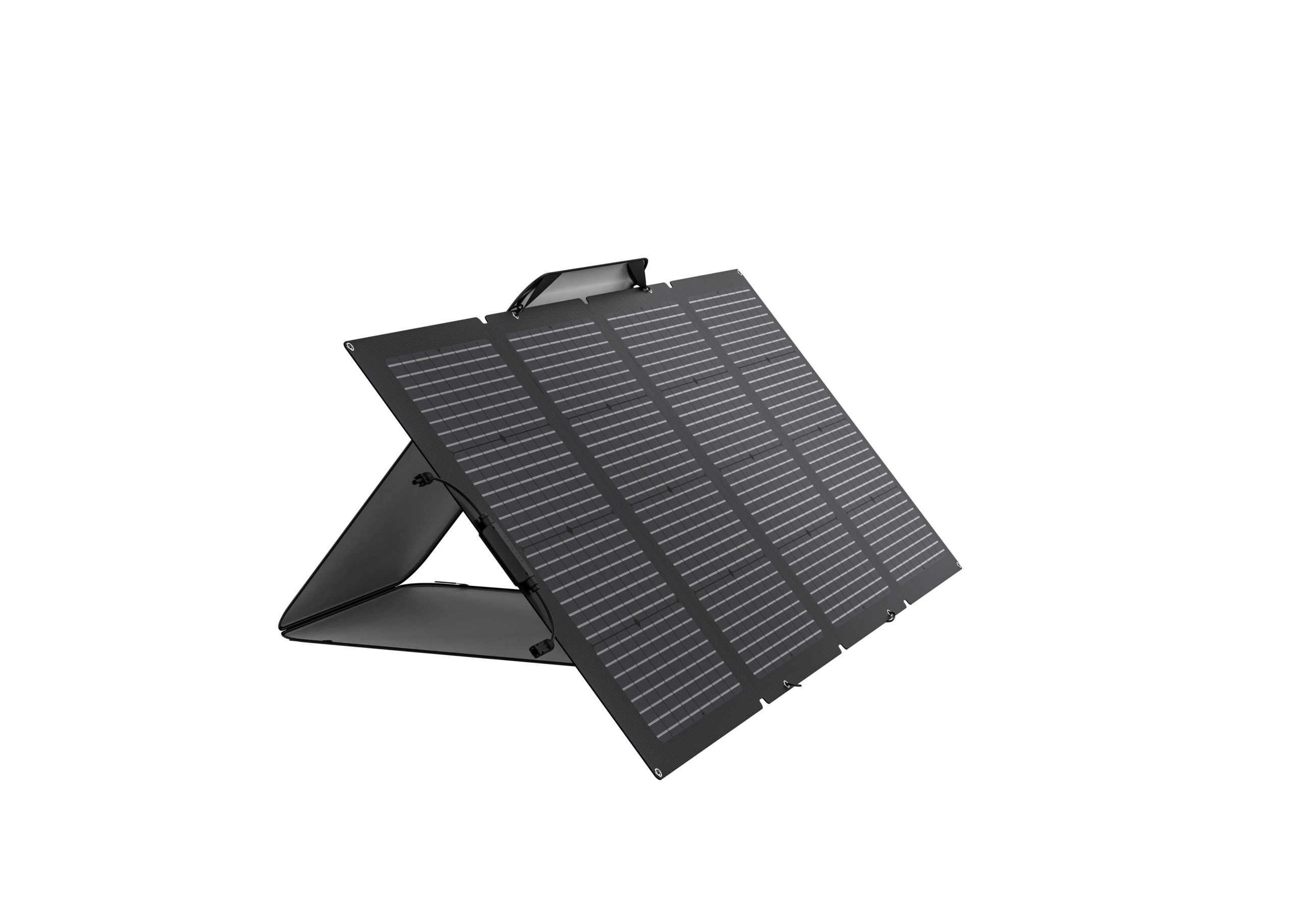

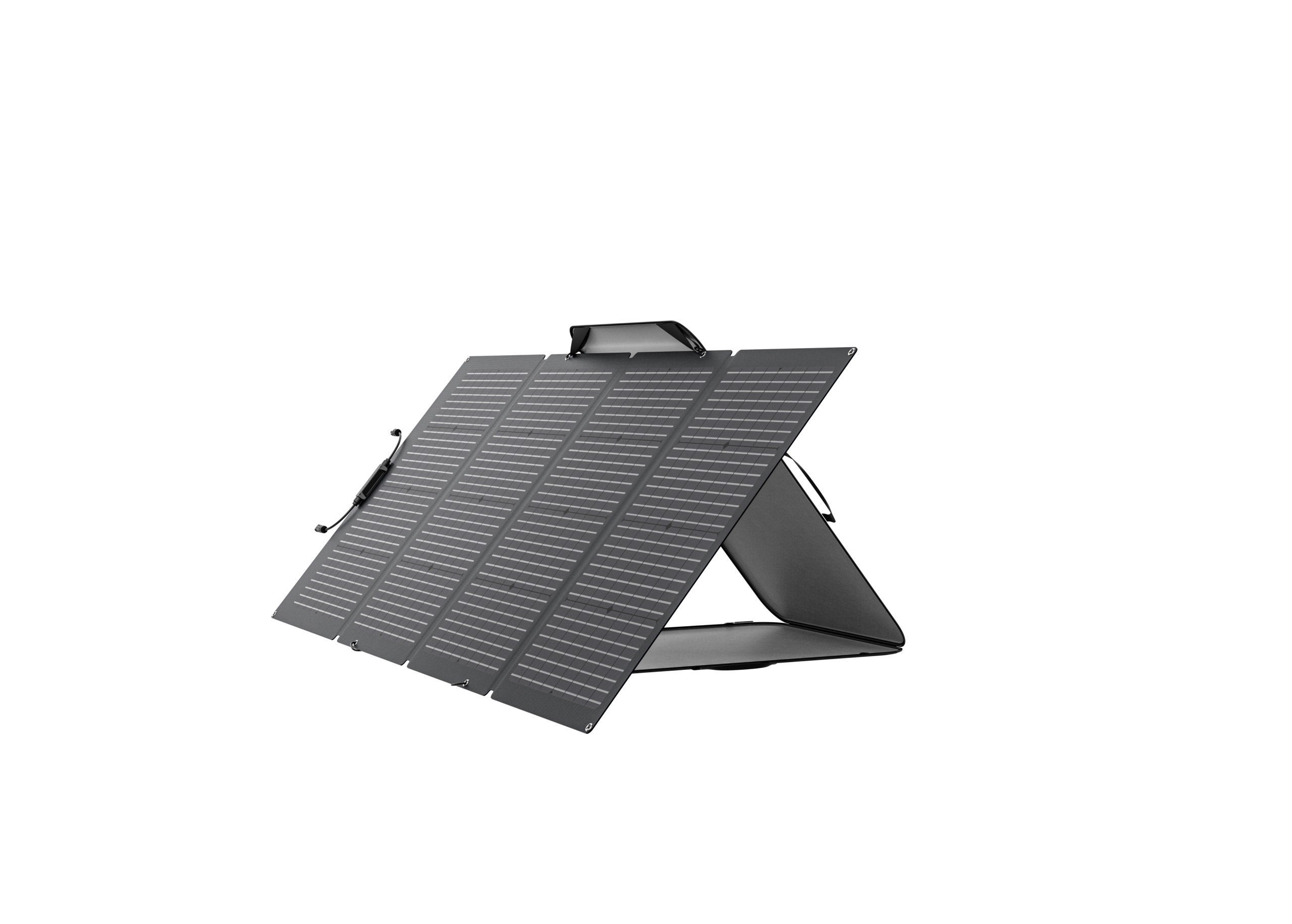

220W
- Rated Power: 220W front (±5W) + up to ~175W rear (bifacial boost; total potential ~395W in ideal reflective conditions like light sand, snow, or mirrors)
- Efficiency: 25% (N-Type TOPCon monocrystalline cells — excellent in partial shade or varied angles)
- Open Circuit Voltage (Voc): 21.5V (Vmp ~18.4V)
- Short Circuit Current (Isc): 12.4A front (Imp ~11.9A) / 9.9A rear (Imp ~9.5A)
- Connector: Photovoltaic (MC4-compatible, with XT60 adapter for direct EcoFlow connection)
- Dimensions:
- Unfolded: 24.2 × 84.8 × 1.0 in (615 × 2155 × 25 mm) — large surface for max capture
- Folded: 24.2 × 23.2 × 1.3 in (615 × 590 × 32 mm) — still packable in a car or larger bag
- Weight: Approx. 15.4–15.9 lbs (7.0–7.2 kg) for the panel (including kickstand/case ~16-20 lbs in some listings)
- Durability: IP68 waterproof and dustproof (fully protected for rain, dust, or immersion)

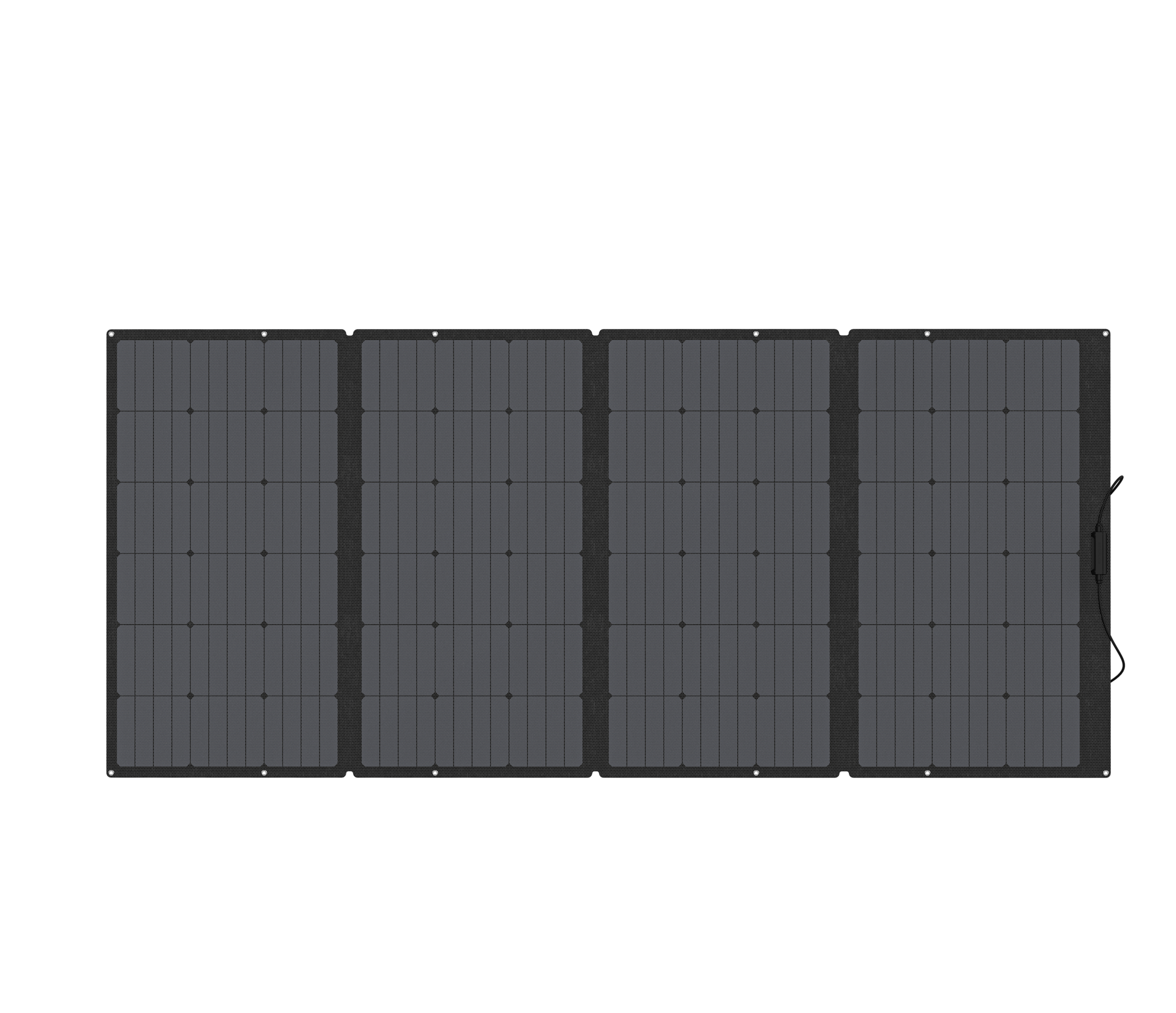

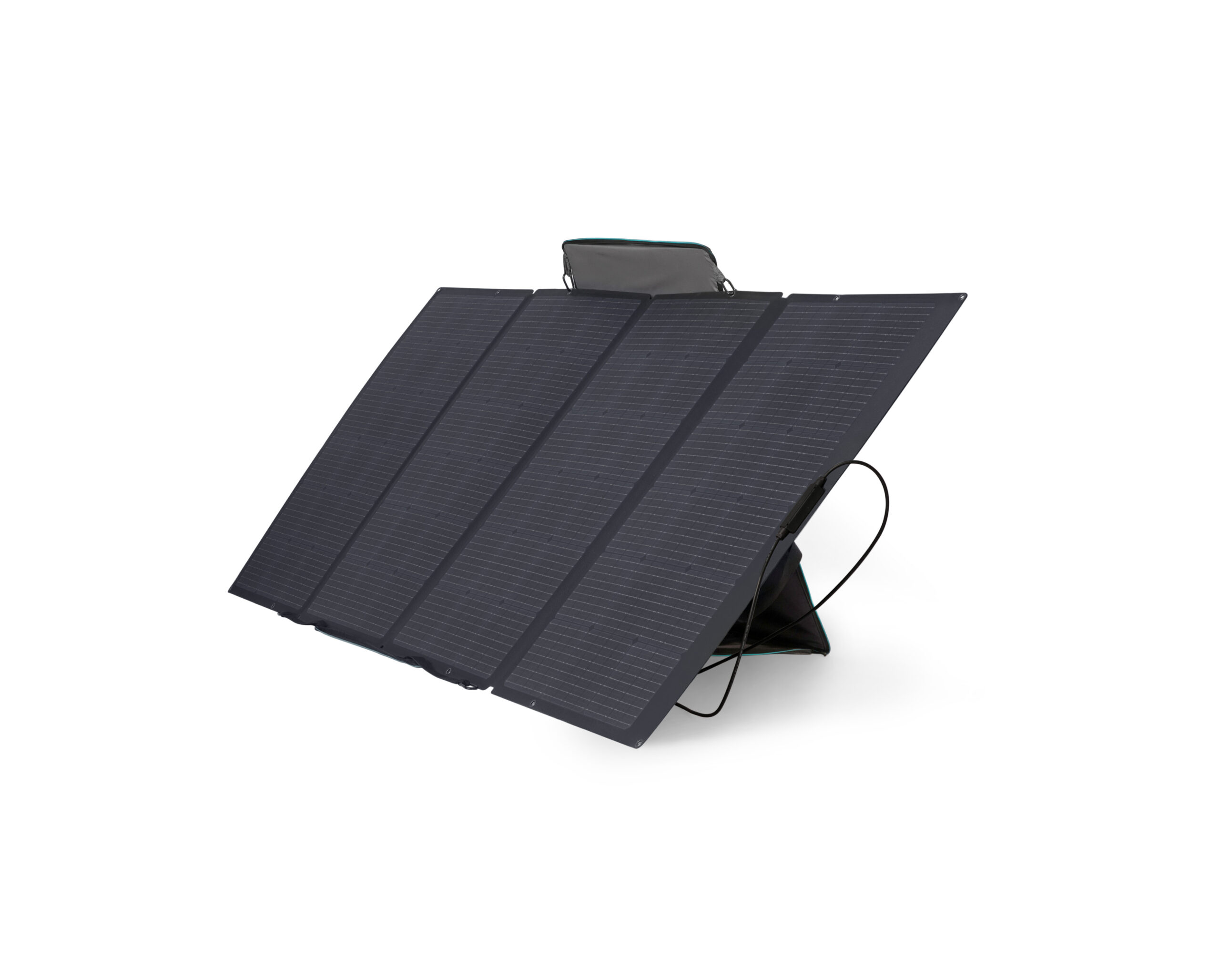

400W
- Rated Power: 400W (±10W)
- Efficiency: 22.6–23% (monocrystalline silicon cells; high conversion for reliable output)
- Open Circuit Voltage (Voc): 48V (Vmp ~41V)
- Short Circuit Current (Isc): 11A (Imp ~9.8A)
- Connector: MC4-compatible (with XT60 adapter/cable included for direct EcoFlow connection)
- Dimensions:
- Unfolded: 41.7 × 93.1 × 1.0 in (105.8 × 236.5 × 2.5 cm) — large surface area for max capture
- Folded: 41.7 × 24.4 × 1.0 in (105.8 × 62.0 × 2.5 cm) — manageable but bulkier than smaller panels
- Weight: Approx. 35.3 lbs (16 kg) for the panel; ~41.9 lbs (19 kg) with kickstand case — requires two people for easy handling/moving
- Durability: IP68 waterproof and dustproof (fully protected for rain, dust, or harsh outdoor use)

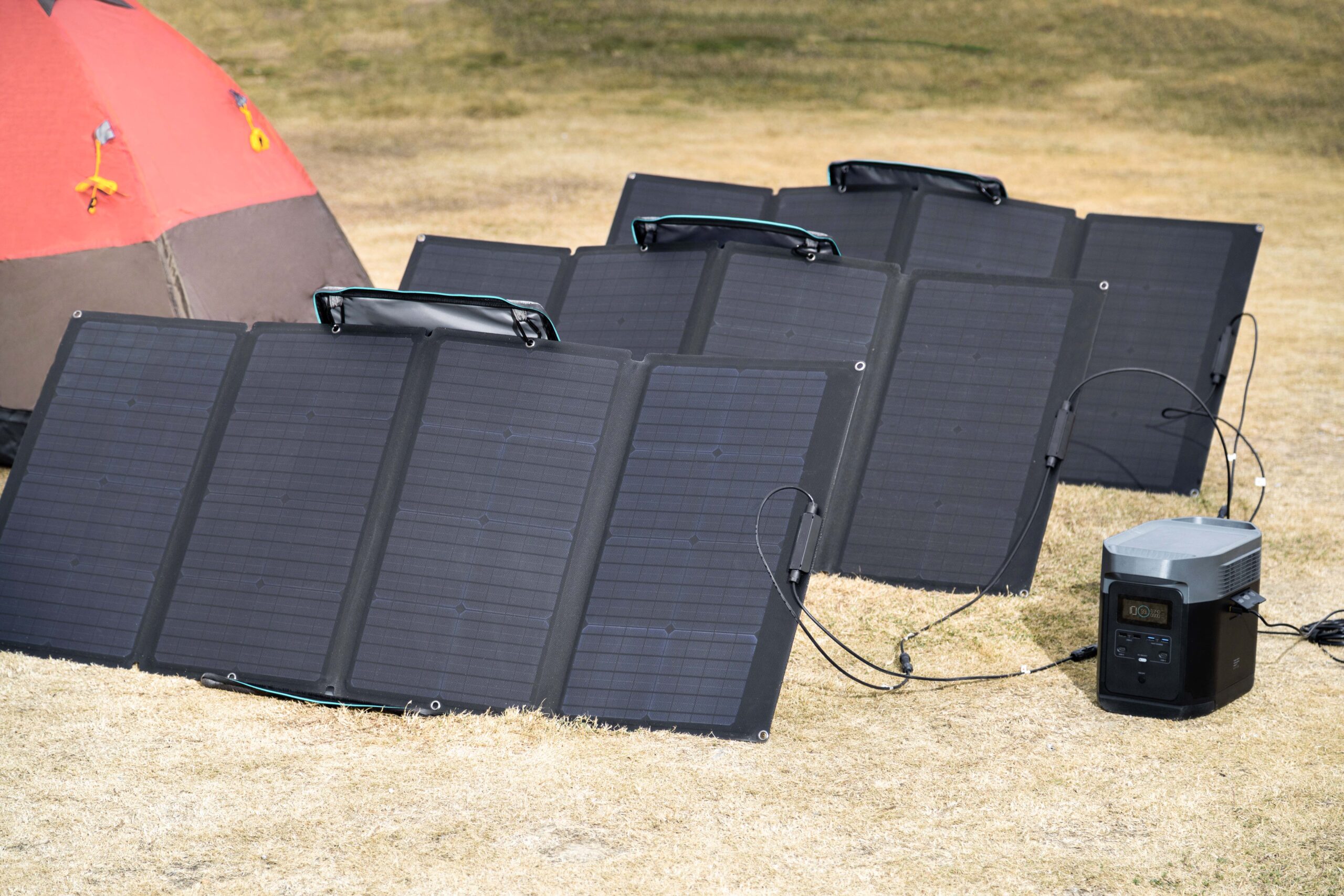

in USE
